Open Sentinel-3-OLCI-Level-1-EFR Data with GDAL and eopfzarr

from osgeo import gdal
import matplotlib.pyplot as plt
import numpy as np
import xarray as xr

# Enable GDAL exceptions
gdal.UseExceptions()


# Helper function for eopfzarr paths (remote access)
def eopfzarr_path(url, subdataset=None):
    base = f'EOPFZARR:"/vsicurl/{url}"'
    return f"{base}:{subdataset}" if subdataset else base


# Sample URLs for Sentinel-3 products
olci_l1_efr_url = "https://objects.eodc.eu/e05ab01a9d56408d82ac32d69a5aae2a:202508-s03olcefr/19/products/cpm_v256/S3B_OL_1_EFR____20250819T074058_20250819T074358_20250819T092155_0179_110_106_3420_ESA_O_NR_004.zarr"

# Open L1 EFR root to explore structure
l1_efr_root_ds = gdal.Open(eopfzarr_path(olci_l1_efr_url))

print(f"Driver: {l1_efr_root_ds.GetDriver().ShortName}")
print(f"Projection (CRS): {l1_efr_root_ds.GetProjection()}")
print(f"GeoTransform: {l1_efr_root_ds.GetGeoTransform()}")

# List subdatasets (hierarchical groups like /measurements/oa01_radiance)
subdatasets = l1_efr_root_ds.GetMetadata("SUBDATASETS")
print("Available Subdatasets for OLCI L1 EFR:")
for key, value in subdatasets.items():
    if key.startswith("SUBDATASET_") and "_DESC" not in key:
        print(f"  {value.split(':')[-1]}")

l1_efr_root_ds = None

def gdal_to_xarray(url, subdataset, size=4000):
    """Convert GDAL data to xarray DataArray for simple plotting like xarray-eopf"""
    path = eopfzarr_path(url, subdataset)
    ds = gdal.Open(path)
    band = ds.GetRasterBand(1)
    data = band.ReadAsArray(0, 0, size, size).astype(np.float32)
    nodata = band.GetNoDataValue()

    # Create simple coordinate arrays
    y_coords = np.arange(size)
    x_coords = np.arange(size)

    # Create xarray DataArray
    da = xr.DataArray(
        data,
        coords={"y": y_coords, "x": x_coords},
        dims=["y", "x"],
        name=subdataset.split("/")[-1],
    )

    # Handle NoData
    if nodata is not None:
        da = da.where(da != nodata)

    ds = None
    return da


# Simple plotting like xarray-eopf: ds.oa01_radiance[::4, ::4].plot(robust=True)
print("Creating xarray-style plots similar to xarray-eopf notebook...")

# One-liner equivalent to xarray-eopf
gdal_to_xarray(olci_l1_efr_url, "measurements/oa01_radiance")[::4, ::4].plot(
    robust=True, figsize=(8, 6)
)

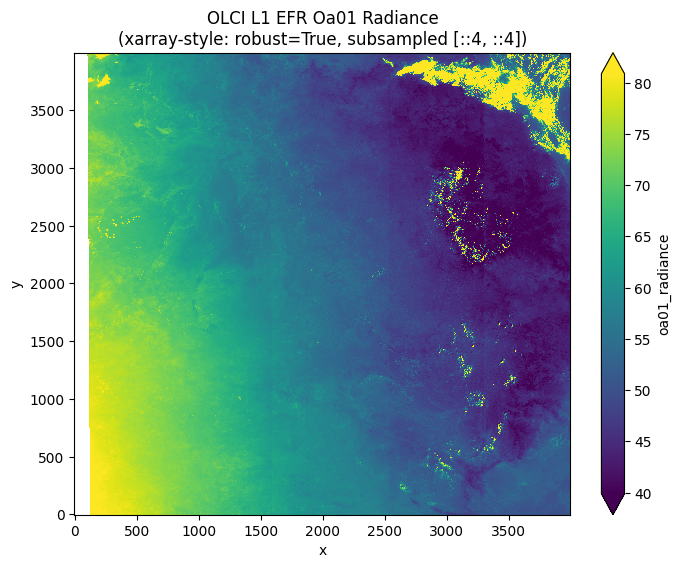

plt.title(
    "OLCI L1 EFR Oa01 Radiance\n(xarray-style: robust=True, subsampled [::4, ::4])"
)
plt.show()

print(
    "✅ This is equivalent to: ds.oa01_radiance[::4, ::4].plot(robust=True) in xarray-eopf"
)

# First, let's explore what coordinate datasets are available
print("Exploring available coordinate datasets in OLCI L1 EFR...")

# Open the root to see what coordinate groups are available
l1_efr_root_ds = gdal.Open(eopfzarr_path(olci_l1_efr_url))
subdatasets = l1_efr_root_ds.GetMetadata("SUBDATASETS")

# Look for coordinate-related subdatasets
coord_datasets = []
for key, value in subdatasets.items():
    if key.startswith("SUBDATASET_") and "_DESC" not in key:
        dataset_path = value.split(":")[-1]
        if any(
            coord in dataset_path.lower()
            for coord in ["lat", "lon", "coordinate", "geometry"]
        ):
            coord_datasets.append(dataset_path)

print("Available coordinate datasets:")
for coord in coord_datasets:
    print(f"  {coord}")

l1_efr_root_ds = None

def gdal_to_xarray_with_coords(
    url, data_subdataset, lat_subdataset, lon_subdataset, size=1000
):
    """Convert GDAL data to xarray DataArray with geographic coordinates"""
    # Load the data
    data_path = eopfzarr_path(url, data_subdataset)
    data_ds = gdal.Open(data_path)
    data_band = data_ds.GetRasterBand(1)
    data = data_band.ReadAsArray(0, 0, size, size).astype(np.float32)
    data_nodata = data_band.GetNoDataValue()
    data_ds = None

    # Load latitude coordinates
    lat_path = eopfzarr_path(url, lat_subdataset)
    lat_ds = gdal.Open(lat_path)
    lat_band = lat_ds.GetRasterBand(1)
    lat = lat_band.ReadAsArray(0, 0, size, size).astype(np.float32)
    lat_ds = None

    # Load longitude coordinates
    lon_path = eopfzarr_path(url, lon_subdataset)
    lon_ds = gdal.Open(lon_path)
    lon_band = lon_ds.GetRasterBand(1)
    lon = lon_band.ReadAsArray(0, 0, size, size).astype(np.float32)
    lon_ds = None

    # Create xarray DataArray with geographic coordinates
    da = xr.DataArray(
        data,
        coords={
            "y": np.arange(size),
            "x": np.arange(size),
            "latitude": (("y", "x"), lat),
            "longitude": (("y", "x"), lon),
        },
        dims=["y", "x"],
        name=data_subdataset.split("/")[-1],
    )

    # Handle NoData
    if data_nodata is not None:
        da = da.where(da != data_nodata)

    return da


# Load data with geographic coordinates using EOPF measurements paths
print("Loading Oa01 radiance with geographic coordinates...")
print("Using measurements group paths: /measurements/latitude, /measurements/longitude")

try:
    oa01_with_coords = gdal_to_xarray_with_coords(
        olci_l1_efr_url,
        "measurements/oa01_radiance",
        "measurements/latitude",
        "measurements/longitude",
        size=800,  # Moderate size for demo
    )

    # Display coordinate information
    print("\n✓ Successfully loaded geographic coordinates!")
    print(f"  Data shape: {oa01_with_coords.shape}")
    print(
        f"  Latitude range: {float(oa01_with_coords.latitude.min()):.3f} to {float(oa01_with_coords.latitude.max()):.3f}"
    )
    print(
        f"  Longitude range: {float(oa01_with_coords.longitude.min()):.3f} to {float(oa01_with_coords.longitude.max()):.3f}"
    )

    coord_success = True

except Exception as e:
    print(f"Primary coordinates failed: {e}")
    # Try orphans coordinates as fallback
    try:
        print(
            "Trying fallback: /measurements/orphans/latitude, /measurements/orphans/longitude"
        )
        oa01_with_coords = gdal_to_xarray_with_coords(
            olci_l1_efr_url,
            "measurements/oa01_radiance",
            "measurements/orphans/latitude",
            "measurements/orphans/longitude",
            size=800,
        )
        print("✓ Successfully loaded orphans coordinates!")
        coord_success = True
    except Exception as e2:
        print(f"Orphans coordinates also failed: {e2}")
        coord_success = False

# Geographic visualization - equivalent to xarray-eopf analysis mode
if coord_success:
    print("Demonstrating geographic plotting - xarray-eopf analysis mode equivalent:")
    print(
        "xarray-eopf: ds.oa01_radiance[::4, ::4].plot(x='longitude', y='latitude', robust=True)"
    )
    print("Our GDAL eopfzarr equivalent:")

    # Plot the data with geographic coordinates

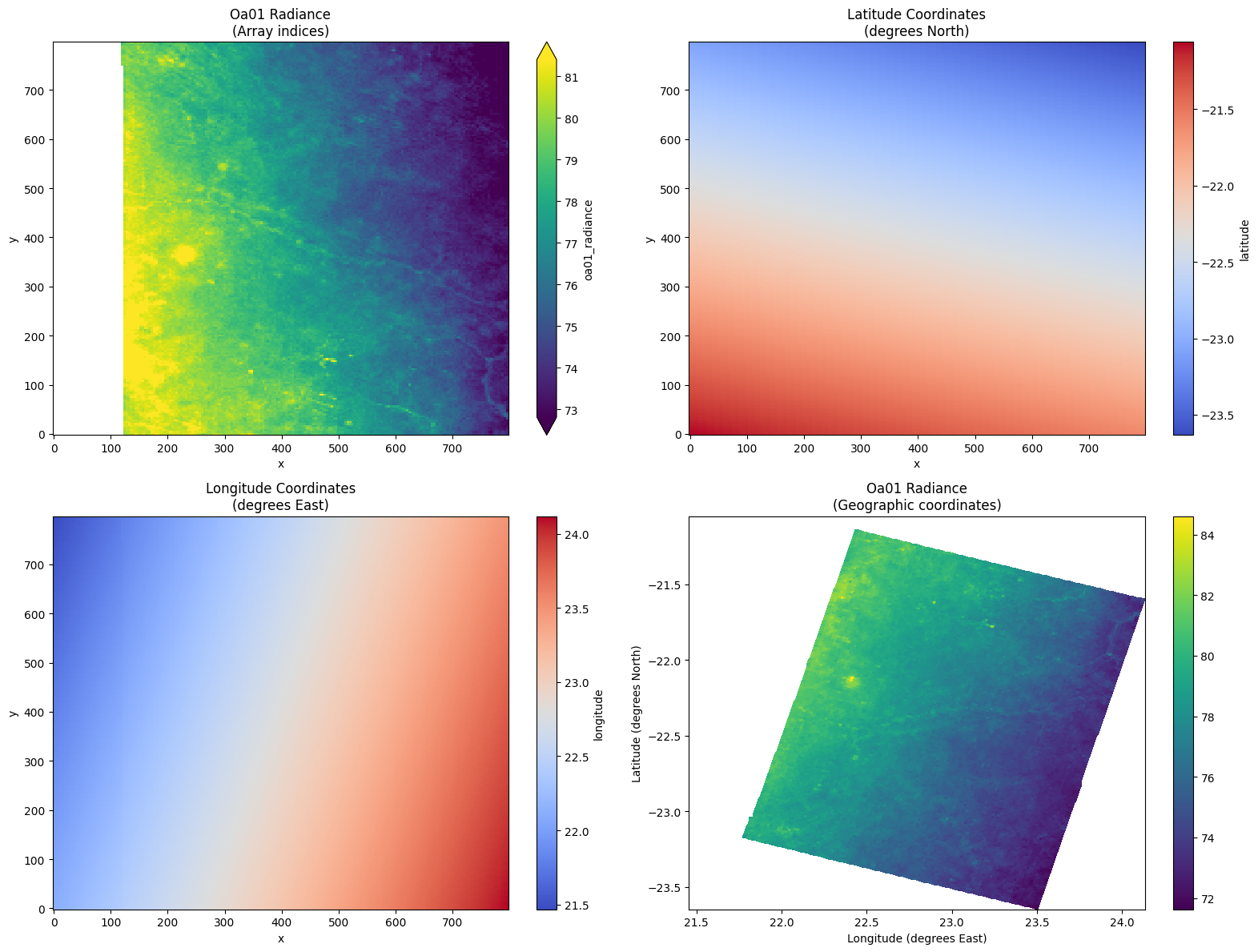

    fig, axes = plt.subplots(2, 2, figsize=(16, 12))

    # 1. Data with array indices (standard)
    oa01_with_coords[::4, ::4].plot(ax=axes[0, 0], robust=True, cmap="viridis")
    axes[0, 0].set_title("Oa01 Radiance\n(Array indices)")

    # 2. Latitude field
    oa01_with_coords.latitude[::4, ::4].plot(ax=axes[0, 1], cmap="coolwarm")
    axes[0, 1].set_title("Latitude Coordinates\n(degrees North)")

    # 3. Longitude field
    oa01_with_coords.longitude[::4, ::4].plot(ax=axes[1, 0], cmap="coolwarm")
    axes[1, 0].set_title("Longitude Coordinates\n(degrees East)")

    # 4. Geographic plot with lat/lon as axes (like xarray-eopf analysis mode)
    try:
        subset = oa01_with_coords[::6, ::6]  # Subsample for clarity
        lat_2d = subset.latitude.values
        lon_2d = subset.longitude.values
        data_2d = subset.values

        im = axes[1, 1].pcolormesh(
            lon_2d, lat_2d, data_2d, cmap="viridis", shading="auto"
        )
        axes[1, 1].set_xlabel("Longitude (degrees East)")
        axes[1, 1].set_ylabel("Latitude (degrees North)")
        axes[1, 1].set_title("Oa01 Radiance\n(Geographic coordinates)")
        plt.colorbar(im, ax=axes[1, 1])
    except Exception as e:
        axes[1, 1].text(
            0.5,
            0.5,
            f"Geographic plot failed:\n{str(e)[:50]}...",
            ha="center",
            va="center",
            transform=axes[1, 1].transAxes,
        )
        axes[1, 1].set_title("Geographic plot (attempted)")

    plt.tight_layout()
    plt.show()

    print(
        "✅ Successfully demonstrated geographic coordinate access with GDAL eopfzarr!"
    )
    print(
        "✅ Coordinates directly accessible from /measurements/latitude and /measurements/longitude"
    )

else:
    print("Geographic coordinate loading failed. Check available coordinate datasets.")

# Simple geographic plotting - one-liner equivalent to xarray-eopf
if coord_success:
    print("\nSimple geographic plotting (xarray-eopf style one-liner equivalent):")

    # Create a simple geographic plot

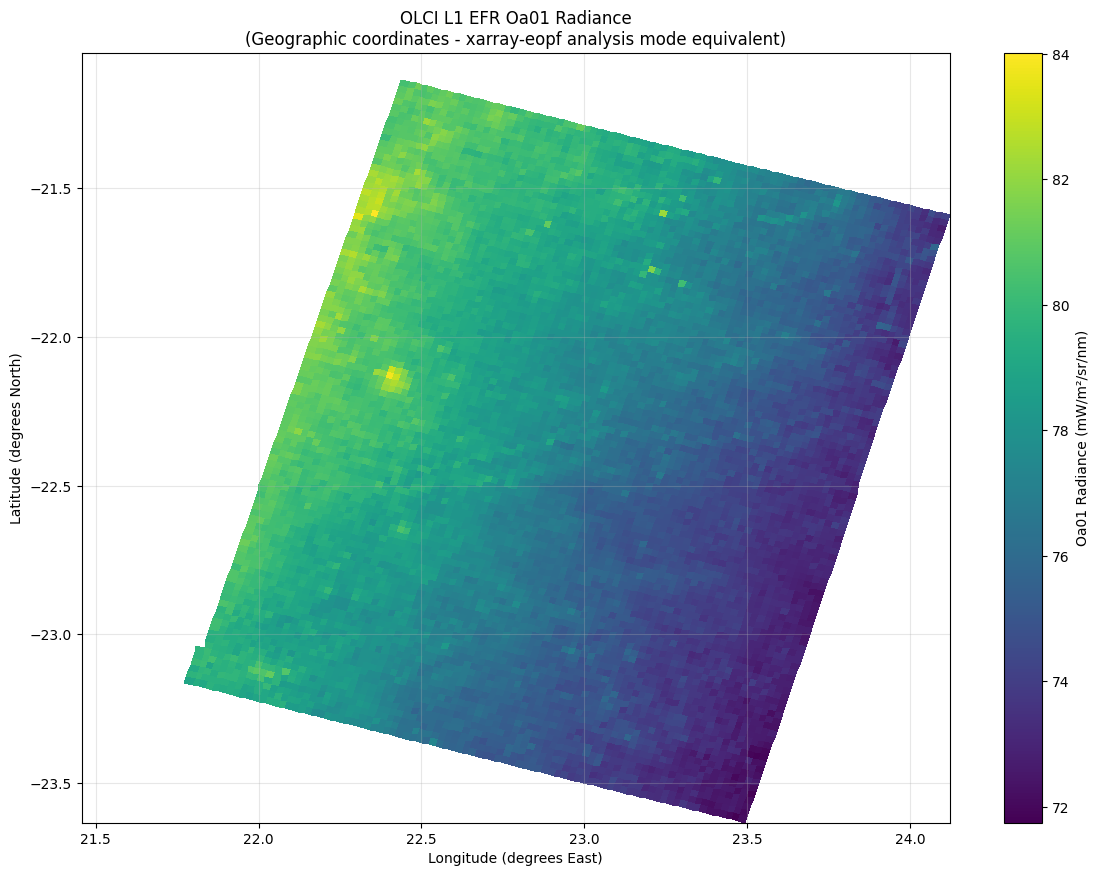

    plt.figure(figsize=(14, 10))

    # Use the geographic coordinates for plotting
    subset = oa01_with_coords[::8, ::8]  # Subsample for performance
    lat_vals = subset.latitude.values
    lon_vals = subset.longitude.values
    data_vals = subset.values

    # Geographic plot - equivalent to ds.oa01_radiance.plot(x='longitude', y='latitude', robust=True)
    plt.pcolormesh(lon_vals, lat_vals, data_vals, cmap="viridis", shading="auto")
    plt.colorbar(label="Oa01 Radiance (mW/m²/sr/nm)")
    plt.xlabel("Longitude (degrees East)")
    plt.ylabel("Latitude (degrees North)")
    plt.title(
        "OLCI L1 EFR Oa01 Radiance\n(Geographic coordinates - xarray-eopf analysis mode equivalent)"
    )
    plt.grid(True, alpha=0.3)
    plt.show()

    print(
        "✅ GDAL eopfzarr successfully replicates xarray-eopf analysis mode geographic plotting!"
    )
    print(
        "✅ Direct access to lat/lon from measurements group enables full geographic analysis"
    )

else:
    print("Geographic plotting requires successful coordinate loading.")
