EOPF Zarr Plugins

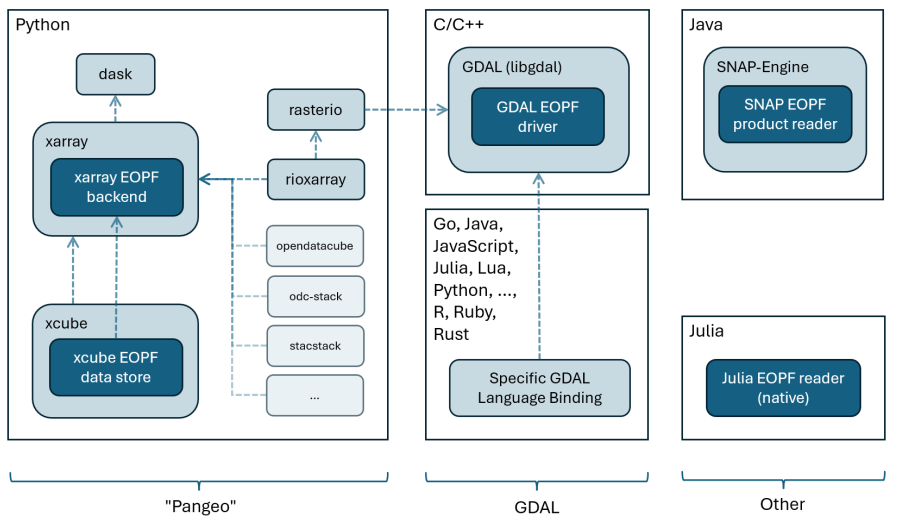

Overview of EOPF Zarr Plugins¶

We build the following plugins:

• xarray EOPF backend

• xcube EOPF data store

• GDAL EOPF driver

• Julia EOPF reader

• SNAP EOPF reader (Prototype for Sentinel-2 L2A, under development)

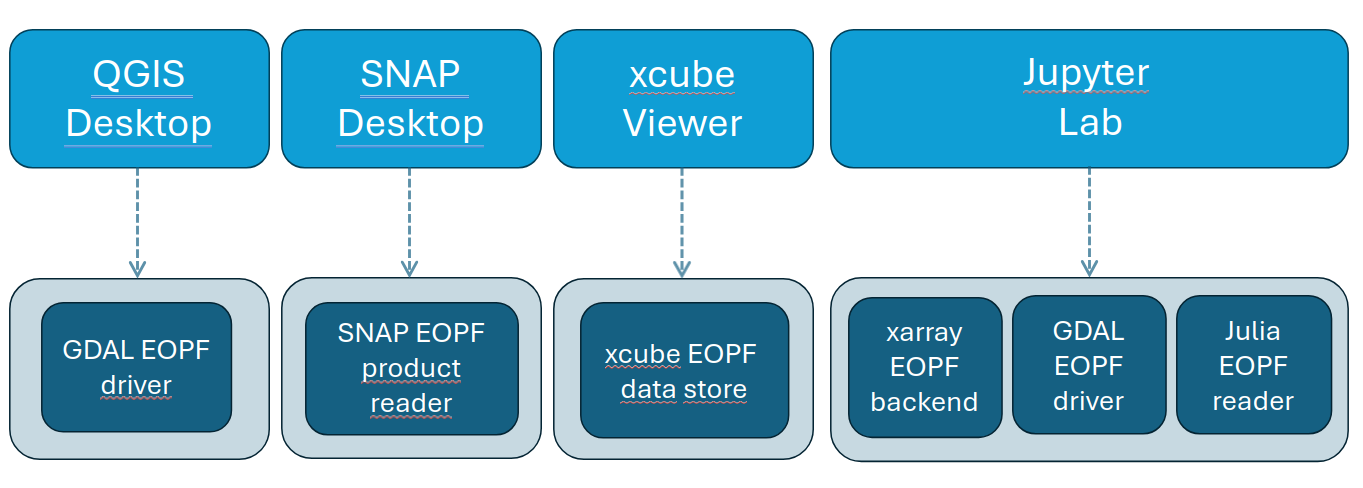

These plugins can be used in the following visualization framework:

What we will learn¶

• 🔍 What can be done with each plugin.

• 🌳 Current developement state future developement plans of each plugin.

• 🔦 How to access data with each plugin.

xarray-eopf backend¶

xarray-eopf is a Python package that enhances xarray by a new backend named "eopf-zarr". This backend allows for reading the ESA EOPF data products in Zarr format and representing them using analysis ready data models.

After installing xarray-eopf, you can open EOPF products with standard xarray functions:

import xarray as xr

dataset = xr.open_dataset(url_or_path, engine="eopf-zarr")
datatree = xr.open_datatree(url_or_path, engine="eopf-zarr")

Modes of operation

1. Analysis mode (op_mode="analysis"): Returns user-friendly, analysis-ready data with preprocessing (e.g. band selection, resampling, rectification). This mode supports only Sentinel-2 and Sentinel-3 products.

2. Native mode (op_mode="native"): Returns a near 1:1 view of the Zarr structure with minimal preprocessing.

🔗 Useful links

• 🐙 GitHub: EOPF-Sample-Service/xarray-eopf

• 📦 PyPI: xarray-eopf

• 🐍 Anaconda: xarray-eopf on conda-forge

• 📖 Documentation: xarray-eopf docs

• 📓 Example notebook:

  • Sentinel-2

  • Sentinel-3

xcube EOPF data store¶

xcube-eopf extends xcube with an "eopf-zarr" data store, enabling the creation of analysis-ready data cubes (ARDC) from Sentinel products via the EOPF Sentinel Zarr Samples Service STAC API.

Once installed, you can access EOPF data products through the standard xcube interface and generate analysis ready data cubes form multiple Sentinel Zarr samples. The workflow for building 3D analysis-ready cubes from Sentinel-2 products involves the following steps:

1. Query products using the EOPF STAC API for a given time range and spatial extent.

2. Retrieve observations as cloud-optimized Zarr chunks via the xarray-eopf backend.

3. Mosaic spatial tiles into single images per timestamp.

4. Stack the mosaicked scenes along the temporal axis to form a 3D cube.

🔗 Useful links

• 🐙 GitHub: EOPF-Sample-Service/xcube-eopf

• 📦 PyPI: xcube-eopf

• 🐍 Anaconda: xcube-eopf on conda-forge

• 📖 Documentation: xcube-eopf docs

• 📓 Example notebook:

  • Sentinel-2

  • Sentinel-3

GDAL EOPF Driver¶

A GDAL plugin for reading EOPF (Earth Observation Processing Framework) Zarr datasets.

✨ Key Features

• Seamless QGIS integration – Works directly with Add Raster Layer

• Smart geospatial handling – Automatic CRS and geotransform detection (crucial for QGIS workflows)

• Optimized performance – Built-in caching, lazy loading, and block prefetching

• Cloud-native – Supports HTTP/HTTPS access and GDAL’s virtual file systems

• Cross-platform – Available on Windows, macOS, and Linux

🚀 How to Use

1. On JupyterHub

   • Go to JupyterHub

   • Select Specify an existing Docker image

   • Enter:

     yuvraj1989/eopf-zarr-driver:latest

2. Locally

   • Follow the setup instructions in the documentation.

3. With QGIS via VNC

   • Run the container:

     docker run -d --name eopf-qgis-vnc -p 6080:6080 -p 8888:8888 \
       yuvraj1989/eopf-qgis-conda:latest /usr/local/bin/start-qgis-demo.sh

   • Then open http://localhost:6080/vnc.html in your browser to access QGIS.

🔗 Useful Links

• 🐙 GitHub: EOPF-Sample-Service/GDAL-ZARR-EOPF

• 📖 Documentation: GDAL EOPF driver docs

• 📓 Example notebooks:

  • Metadata comparison Zarr vs EOPFZARR GDAL reader

  • Sentinel-2 with EOPFZARR GDAL

  • Sentinel-3 with EOPFZARR GDAL

Julia EOPF reader¶

A Julia plugin for reading EOPF (Earth Observation Processing Framework) Zarr datasets. You can open the EOPF data into a DimTree with Raster leaves for the underlying data. This currently gives you a 1:1 representation of the data in the zarr folder.

🔗 Useful links

• 🐙 GitHub: JuliaGeo/SentinelDataSource

• 📖 Documentation: JuliaGeo/SentinelDataSource docs
